IR 810nm 3535 SMD ki ap dirije Dyòd Espesifikasyon
| Non pwodwi | IR 810nm 3535 SMD LED Dyòd |
| Nimewo pati | GT-3535R805-1CC0-G1D2M |
| Chips mak | Taiwan Epileds |
| Mak manifakti sou etikèt |
Mak GMKJ Manifaktire pa Guangmai Teknoloji co, Ltd, ki sitiye nan vil Shenzhen, Lachin |
| Antre |
1.4-1.8vdc ak IFmax 700mA |
| Lumineux/Radyan Flux | 400-600mW nan 700mA |
| Efikasite ekleraj | Envizib enfrawouj dirije, pa gen LM / W ki disponib |
| Longèdonn / Koulè |
Pik longèdonn 805-810 nm
Lòt longèdonn ki disponib isit la nan longèdonn enfrawouj: 730-740nm; 805-810nm; 830-835nm; 845-855nm; 900-910nm; 940-950nm;
Longèdonn SWIR ki disponib nan: 1040-1050nm; 1060-1080nm; 1200-1250nm; 1300-1350nm; 1400-1450nm; 1500-1550nm; 1570-1580nm; 1600-1650nm; |
| Pouvwa |
1-3 Watt |
| Materyèl pake |
AL2O3 seramik, 3.5x3.5mm gwosè smd dirije |
| Ang ekleraj |
Ang ekleraj 120 degre, lantiy silicone dome (Estok regilye, ti kantite se OK) Ang ekleraj 90 degre, lantiy silicone dome (MOQ 2000 pcs) Ang ekleraj 60 degre, lantiy silicone dôme (MOQ 2000 pcs) Ang ekleraj 30 degre, lantiy silicone dome (MOQ 2000 pcs) |
| Pri | Tanpri kontakte GMKJ pou pri a |
| Min kantite lòd |
Sa depann de disponiblite stock la: Si nou pare pou bato stock, Lè sa a, menm 100 pcs ak objektif tès echantiyon yo akseptab isit la. Si pa gen okenn stock, Lè sa a, nou bezwen min kantite lòd ak omwen 1,000 pcs ak 1 pake woulo liv. |
| Garanti | 4 ane |
| Sèvis OEM |
1. Pati SKD ki disponib; 2. Customized dirije etalaj ak gwosè a ou bezwen se OK isit la. |
| Nimewo pati | Pouvwa | Longèdonn | Chips mak | Espesifikasyon antre | ||
| GT-3535R700-G1D2 | 1-3W | 700-710nm | Taiwan Epileds 42mil | 2V 700mA | ||
| GT-3535R730-G1B7 | 1W | 730-740nm | Taiwan Epileds 27mil | 2V 350mA | ||
| GT-3535R730-S2D5 | 1-3W | 730-740nm | Sijere! Shilan 45mil, gwo pouvwa optik / 30 degre, 60 degre, 90 degre, 120 degre | 2V 700mA | ||
| GT-3535R730-G1D2 | 1-3W | 730-740nm | Taiwan Epileds 42mil / 30 degre, 60 degre, 90 degre, 120 degre | 2V 700mA | ||
| GT-3535R750-G1D2 | 1-3W | 750-760nm | Taiwan Epileds 42mil | 2V 700mA | ||
| GT-3535R760-G1D2 | 1-3W | 760-765nm | Taiwan Epileds 42mil | 2V 700mA | ||
| GT-3535R780-G1D2 | 1-3W | 780-790nm | Taiwan Epileds 42mil | 2V 700mA | ||
| GT-3535R800-G1D2 | 2-3W | 800-810nm, 400-600mW | Taiwan Epileds 42mil | 1.5V max 1000mA | ||
| GT-3535R800-1CS0-G1D2 | 4-6W | 800-810nm, 800-900mW | Epileds 42mil, Nano Stack segondè mW / 30 degre, 60 degre, 90 degre, 120 degre | 3V max 1000mA | ||
| GT-3535R830-G1D2 | 2-3W | 830-840nm, 400-600mW | Taiwan Epileds 42mil | 1.5V max 1000mA | ||
| GT-3535R850-S2B6 | 1.5W | 845-855nm (sijere) | Lachin Shilan 26mil, segondè mW / 30 degre, 60 degre, 90 degre, 120 degre | 1.5V max 500mA | ||
| GT-3535R850-S2C6 | 2W | 845-855nm (sijere) | Lachin Shilan 36mil, segondè mW / 30 degre, 60 degre, 90 degre, 120 degre | 1.5V max 700mA | ||
| GT-3535R850-S2D2 | 3W | 845-855nm (sijere) | Lachin Shilan 42mil, segondè mW / 30 degre, 60 degre, 90 degre, 120 degre | 1.5V max 1000mA | ||
| GD-3535R850-S2D2 | 3-4W | 845-855nm (sijere) | Lachin Shilan 42mil, segondè mW / 30 degre, 60 degre, 90 degre, 120 degre | 1.5V max 1500mA | ||
| GT-3535R850-G1D2 | 2-3W | 845-855nm, 400-600mW | Taiwan Epileds 42mil / 30 degre, 60 degre, 90 degre, 120 degre | 1.5V max 1000mA | ||
| GT-3535R850-1CS0-G1D2 | 3-5W | 845-855nm, 800-900mW | Taiwan Epileds 42mil, Nano Stack / 30 degre, 60 degre, 90 degre, 120 degre | 3V max 1000mA | ||
| GD-3535R850-1CS0-S1D2 | 4-6W | 850-855nm, 1500-1800mW | Lachin Sanan 42mil, Nano Stack / 30 degre, 60 degre, 90 degre, 120 degre | 3V max 1500mA | ||
| GT-3535R880-G1D2 | 2-3W | 880-885nm, 400-600mW | Taiwan Epileds 42mil | 1.5V max 1000mA | ||
| GT-3535R900-G1D2 | 2-3W | 900-910nm, 400-600mW | Taiwan Epileds 42mil | 1.5V max 1000mA | ||
| GT-3535R940-G1B8 | 1W | 940-950nm | Taiwan Epileds 28mil | 1.5V 350mA | ||
| GT-3535R940-G1D2 | 2-3W | 940-950nm, 400-600mW | Taiwan Epileds 42mil / 30 degre, 60 degre, 90 degre, 120 degre | 1.5V max 1000mA | ||
| GT-3535R940-S1D2 | 2-4W | 940-950nm (sijere) 500-700mW | Lachin Sanan 42mil / 30 degre, 60 degre, 90 degre, 120 degre | 1.5V max 1500mA | ||
| GT-3535R940-1CS0-G1D2 | 3-5W | 940-950nm, 800-900mW | Taiwan Epileds 42mil, Nano Stack / 30 degre, 60 degre, 90 degre, 120 degre | 3V max 1000mA | ||
| GD-3535R940-1CS0-S1D2 | 4-6W | 940-950nm, 1500-1800mW | Lachin Sanan 42mil, Nano Stack / 30 degre, 60 degre, 90 degre, 120 degre | 3V max 1500mA | ||
| GT-3535R940-G1B8 | 1W | 940-950nm | Taiwan Epileds 28mil | 1.5V 350mA | ||
| GT-3535R980-G1D2 | 1-3W | 980-985nm | Taiwan Epileds 42mil | 1.5V 700mA | ||
| GT-3535R1040-G1D2 | 1-3W | SWIR 1040-1050nm | Taiwan Epileds 42mil / 30 degre, 60 degre, 90 degre, 120 degre | 1.0-1.4V 700mA | ||
| GT-3535R1060-S1D2 | 1-3W | SWIR 1060-1070nm | Lachin Sanan 42mil/30 degre, 60 degre, 90 degre, 120 degre | 1.0-1.4V 700mA | ||
| GT-3535R1060-G1D2 | 1-3W | SWIR 1060-1080nm | Taiwan Epileds 42mil / 30 degre, 60 degre, 90 degre, 120 degre | 1.0-1.4V 700mA | ||
| GT-3535R1200-G1D2 | 1-3W | SWIR 1200-1250nm | Taiwan Epileds 42mil / 30 degre, 60 degre, 90 degre, 120 degre | 0.8-1.4V 700mA | ||
| GT-3535R1300-G1D2 | 1-3W | SWIR 1300-1350nm | Taiwan Epileds 42mil / 30 degre, 60 degre, 90 degre, 120 degre | 0.8-1.4V 700mA | ||
| GT-3535R1400-G1D2 | 1-3W | SWIR 1400-1450nm | Taiwan Epileds 42mil / 30 degre, 60 degre, 90 degre, 120 degre | 0.6-1.2V 700mA | ||
| GT-3535R1500-G1D2 | 1-3W | SWIR 1500-1550nm | Taiwan Epileds 42mil / 30 degre, 60 degre, 90 degre, 120 degre | 0.6-1.2V 700mA | ||
| GT-3535R1575-G1D2 | 1-3W | SWIR 1575-1580nm | Taiwan Epileds 42mil / 30 degre, 60 degre, 90 degre, 120 degre | 0.6-1.2V 700mA | ||
| GT-3535R1630-G1D2 | 1-3W | SWIR 1630-1650nm | Taiwan Epileds 42mil / 30 degre, 60 degre, 90 degre, 120 degre | 0.6-1.2V 700mA | ||

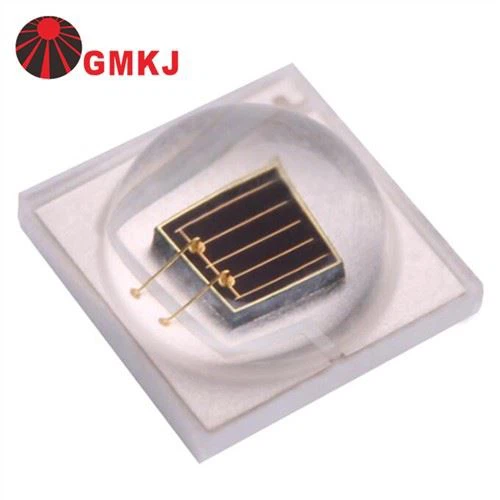

IR 810nm 3535 SMD LED Dyòd picture
 |
 |
|
120 degre ang ekleraj, dôme silicone ou/twou je 120 degre |
Ang ekleraj 90 degre, lantiy silicone dome (MOQ 2000 pcs) Ang ekleraj 60 degre, lantiy silicone dôme (MOQ 2000 pcs) Ang ekleraj 30 degre, lantiy silicone dome (MOQ 2000 pcs) |
Aliminyòm dirije PCBA reyini pa GMKJ (desen PCB ak BOM bay kliyan nou yo)
GMKJ gen pwòp tèt nou -pwòp SMT dirije PCB liy asanble tablo, ki gen ladan otomatik davwa ak mete machin, otomatik soude keratin aplike machin, gwo tanperati fou reflow.
Nou kapab fè asanble tablo pcb ki ap dirije pou kliyan nou yo si yo kapab ba nou desen tablo pcb ak lis BOM tablo pcb.
IR 810nm 3535 SMD dirije Dimansyon Dyòd
IR 810nm 3535 SMD LED DyòdEspesifikasyon elektrik
|
Paramèt |
Senbòl |
Kondisyon yo |
Min |
Mwayèn |
Max |
Inite yo |
|
Avant Voltage |
VF |
IF=700mA |
1.40 |
-- |
1.80 |
V |
|
Rezistans tèmik Junction Pou Board |
RΘJ-B |
IF=700mA |
-- |
6.5 |
-- |
degreC/W |
|
RadyanFlux |
Φe |
IF=700mA |
400 |
-- |
600 |
mW |
|
Piklongèdonn |
λp |
IF=700mA |
805 |
-- |
810 |
nm |
|
Kouran ranvèse |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Wè Ang [1] |
2Θ1/2 |
IF=700mA |
−− |
120 |
−− |
Deg |
Poukisa led 810nm yo lajman itilize pou limyè terapi wouj? Ki avantaj li yo konpare ak longèdonn 850nm?
810nm se souvan itilize nan terapi wouj / NIR sitou paske li se fèmen nan youn nan pik yo absòpsyon nan anzim mitokondriyo (tankou cytochrome c oksidaz). An tèm senp, kò a ka "itilize" longèdonn sa a yon ti jan pi efikas, kidonk efè fotobiomodulasyon an anjeneral konsidere kòm pi fò.
Konpare ak 850nm:
Efikasite:
810nm jeneralman konsidere kòm pi "biyolojik aktif", kidonk li souvan itilize nan aplikasyon ki pi pwofesyonèl oswa medikal -.
Pénétration:
850nm ka antre yon ti kras pi fon nan tisi, pandan y ap 810nm se toujou fon men absòbe yon ti jan plis sou wout la.
Efikasite:
850nm dirije yo anjeneral pi efikas ak pi fasil jwenn pi wo pwodiksyon, ki se poukisa yo trè komen nan pwodwi komèsyal yo.
Vizibilite:
850nm gen yon ekla wouj fèb, pandan y ap 810nm se prèske konplètman envizib.
Se konsa, nan pratik:
810nm souvan chwazi lè konsantre plis sou pèfòmans terapi
850nm se lajman itilize lè efikasite, pri, ak pouvwa pwodiksyon yo pi enpòtan
Tou de yo lajman itilize, jis ak priyorite yon ti kras diferan
Ou ka telechaje fichye done ki soti nan paj sa a pou dirije SMD ki gen rapò.
Si ou bezwen plis detay tankou pri, kantite lòd min, estati stock ak tan plon, tanpri kontakte ak GMKJ dirije dirèkteman!
