Pwodwi Deskripsyon
Blan 3W 5W 3535 SMD dirije montre jan pi ba a:
| Non pwodwi | Blan 3W 5W 3535 SMD dirije |
| Chips mak |
3W ak Lachin Sanan 40mil chips; 5W ak Lachin Sanan 55mil chips. |
| Antre |
3W ak 3-3.4vdc 700-1000mA; 5W ak 3-3.4vdc 1500mA. |
| Klète |
1W 350mA ak 190-210lm ak plis pase 200LM/W 3W 700mA ak 280-320lm; 5W 1500mA ak 600-650lm. |
| Koulè |
Blan 2700K, 3000K, 4000K, 5000K ak 6500K brase<5 |
| KRIYE |
Ra>70, Ra>80 and Ra>90 opsyonèl |
| Materyèl tablo |
3W ak pake seramik ALO; 5W ak pake seramik ALN |
| Ang ekleraj |
Kalite lantiy Silcone: 120, 90, 60 ak 30 degre si ou vle Kalite pake plat san lantiy: 120 degre |
| Mak ak manifakti | GMLEDs, GMKJ |
| Garanti | 3 zan |
Blan 3W 5W 3535 SMD dirije gwosè:
| Silicone dome lantiy kalite 3535 smd dirije | Kalite pake plat 3535 smd led |
 |
 |

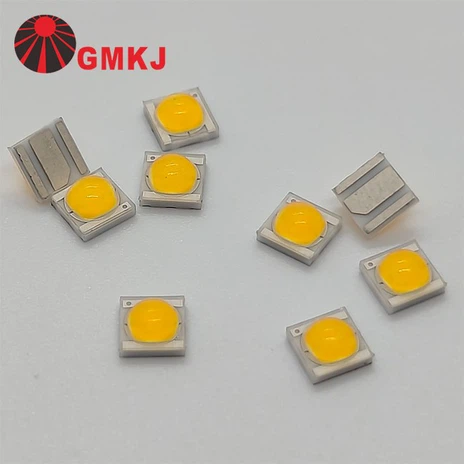

Blan 3W 5W 3535 SMD ki ap dirije foto:
| Silicone dome lantiy kalite 3535 smd dirije | Kalite pake plat 3535 smd led |
 |
 |
Blan 3W 5W 3535 SMD dirije karakteristik teknik:
■ Karakteristik elektrik/optik --Blan (nan TA=25 degre)
|
Paramèt |
Senbòl |
Kondisyon |
min |
Mwayèn |
Maks |
Inite yo |
|
Avant Voltage |
VF |
IF=350mA |
2.80 |
-- |
3.20 |
V |
|
Rezistans tèmik Junction Pou Komisyon Konsèy |
RΘJ-B |
IF=350mA |
-- |
6.5 |
-- |
degre /W |
|
Flux lumineux |
Φv |
IF=350mA |
170 |
|
190 |
manch |
|
Flux lumineux |
Φv |
IF=700mA |
300 |
|
330 |
manch |
|
Tanperati Koulè |
CCT |
IF=350mA |
|
5000 |
|
K |
|
Tolerans koulè |
|
IF=350mA |
-- |
-- |
5 |
brase |
|
KRIYE |
Ra |
IF=350mA |
70 |
-- |
-- |
-- |
|
Koyefisyan Tanperati nan Voltage Avant |
∆VF/∆T |
IF=350mA |
−− |
-2 |
−− |
mV / degre |
|
Kouran ranvèse |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Wè Ang |
2Θ1/2 |
IF=350mA |
−− |
120 |
−− |
Degè |
■ Koulè ＆ binning
|
CCT |
MacAdam Elips |
Poode ki enkli |
Sant Pwen |
Gwo Aks |
Aks minè |
Ang wotasyon (degre) |
|
|
6500K |
3-etap |
A3-65 |
0.3123 |
0.3282 |
0.00669 |
0.00285 |
58.57 |
|
5700K |
3-etap |
A3-57 |
0.3287 |
0.3147 |
0.00746 |
0.00320 |
59.09 |
|
5000K |
3-etap |
A3-50 |
0.3447 |
0.3553 |
0.00822 |
0.00354 |
59.62 |
|
4000K |
3-etap |
A3-40 |
0.3818 |
0.3797 |
0.00939 |
0.00402 |
53.72 |
|
3500K |
3-etap |
A3-35 |
0.4073 |
0.3917 |
0.00927 |
0.00414 |
53.22 |
|
3000K |
3-etap |
A3-30 |
0.4338 |
0.4030 |
0.00834 |
0.00408 |
53.22 |
|
2700K |
3-etap |
A3-27 |
0.4578 |
0.4104 |
0.00810 |
0.00420 |
53.70 |
|
6500K |
5-etap |
A5-65 |
0.3123 |
0.3282 |
0.01115 |
0.00475 |
58.57 |
|
5700K |
5-etap |
A5-57 |
0.3287 |
0.3147 |
0.01243 |
0.00533 |
59.09 |
|
5000K |
5-etap |
A5-50 |
0.3447 |
0.3553 |
0.01370 |
0.00590 |
59.62 |
|
4000K |
5-etap |
A5-40 |
0.3818 |
0.3797 |
0.01565 |
0.00670 |
53.72 |
|
3500K |
5-etap |
A5-35 |
0.4073 |
0.3917 |
0.01545 |
0.00690 |
53.22 |
|
3000K |
5-etap |
A5-30 |
0.4338 |
0.4030 |
0.01390 |
0.00680 |
53.22 |
|
2700K |
5-etap |
A5-27 |
0.4578 |
0.4104 |
0.01350 |
0.00700 |
53.70 |
Blan 3W 5W 3535 SMD dirije seri pwodwi:
| FOTO | MODÈL NON. | POUVWA | Koulè | Chips spécifications | Espesifikasyon antre | ||
 |
GT{{0}W{6-DH43 | 3W | Koulè blan, lantiy slicone dôme | Dehao 43mil baskile chip, max reflow temp<200C | 3V 350-700mA | ||
| GT-3535W6-SA32 | 1-2W | Koulè blan, lantiy slicone dôme | Sanan 32mil flip chip | 3V 350-500mA | |||
| GT-3535W6-SA40 | 3W | Koulè blan, lantiy slicone dôme | Sanan 40mil flip chip | 3V 350-1000mA | |||
| GD{{0}W{6-SA55 | 5W | Koulè blan, lantiy slicone dôme | Sanan 55mil flip chip | 3V 1000-1500mA | |||
| GD-3535W6-SA55-C | 5-6W | Koulè blan, segondè klète | Sanan 55Cmil flip chip, 1W 350mA ak 200-210lm/w | 3V 1000-2000mA | |||
| GT-3535W6-SL40 pou limyè flanbo | 3W | Blan, pou limyè flanbo | Shilan 40mil vètikal | 3V 350-1000mA | |||
| GT-3535W6-SL48 pou limyè flanbo | 5W | Blan, pou limyè flanbo | Shilan 48mil vètikal | 3V 1000-1500mA | |||
| GD-3535W6-SL57 pou limyè flanbo | 6W | Blan, pou limyè flanbo | Shilan 57mil vètikal | 3V 1000-2000mA | |||
 |
GT-3535W6-SA40P | 3W | Koulè blan, pake plat | Sanan 40mil flip chip | 3V 350-1000mA | ||
| GT{{0}W{6-SA55P | 5W | Koulè blan, pake plat | Sanan 55mil flip chip | 3V 1000-1500mA | |||
 |
GT-3535R-GH40 | 1-3W | Wouj, 620-630nm | Taiwan Epileds 40mil, {{1}lm | 2V 700mA | ||
| GT-3535R-GH42 | 1-3W | Wouj, 620-630nm | Taiwan Epileds 42mil, {{1}lm | 2V 700mA | |||
| GT{{0}g-GH45 | 1-3W | Vèt, 520-530nm | Taiwan Epileds 45mil plat | 3V 700mA | |||
| GT{{0}g-DXY45 | 1-3W | Vèt, 520-530nm | Dingxinyuan 45mil, super klere | 3V 700mA | |||
| GT-3535B-GH45 | 1-3W | Ble, 455-465nm | Taiwan Epileds 45mil plat | 3V 700mA | |||
| GT{{0}r-SA38 | 1-3W | Wouj, 620-630nm | Sanan 38mil vètikal | 2V 700mA | |||
| GT-3535R-SA40 | 1-4W | Wouj, 620-630nm | Sanan 40mil vètikal | 2V 700-1000mA | |||
| GT-3535G-SA38 | 1-4W | Vèt, 520-530nm | Sanan 38mil vètikal | 3V 700-1000mA | |||
| GT{{0}b-SA38 | 1-4W | Ble, 455-465nm | Sanan 38mil vètikal | 3V 700-1000mA | |||
| GD-3535R-SA4047 | 4-8W | Wouj, 620-630nm | Sanan 4047mil vètikal | 2V 1500-2500mA | |||
| GD{{0}g-SA4047 | 4-8W | Vèt, 520-530nm | Sanan 4047mil vètikal | 3V 1500-2500mA | |||
| GD-3535B-SA4047 | 4-8W | Ble, 455-465nm | Sanan 4047mil vètikal | 3V 1500-2500mA | |||
| GT-3535R-OSL40 | 1-4W | Wouj, 620-630nm | Almay Osram 40mil vètikal | 2V 700-1000mA | |||
| GT{{0}g-OSL40 | 1-4W | Vèt, 520-530nm | Almay Osram 40mil vètikal | 3V 700-1000mA | |||
| GT{{0}b-OSL40 | 1-4W | Ble, 455-465nm | Almay Osram 40mil vètikal | 3V 700-1000mA | |||
| GT-3535Y-LS28 | 1W | Amber, 590-595nm | Taiwan HPO 28mil | 2V 350mA | |||
| GT-3535Y-JY42 | 1-3W | Amber, 590-595nm | Taiwan Epistar 42mil | 2V 700mA | |||
| GT-3535AB-GH42 | 1-3W | Amber, 600-610nm | Taiwan Epileds 42mil | 2V 700mA | |||
| GT-3535AB-SA40 | 1-3W | Amber, {{0}k PC | Kalite fosfò, Lachin Sanan 40mil eutektik | 3V 700mA | |||
| GT-3535uV-GH30-365 | 1W | UVA,365-375nm | Taiwan Epileds 30mil | 3V 350mA | |||
| GT-3535uV-GH45-365 | 1-3W | UVA,365-375nm | Taiwan Epileds 45mil vètikal | 3V 700mA | |||
| GT-3535uV-GH45-380 | 1-3W | UVA,380-390nm | Taiwan Epileds 45mil vètikal | 3V 700mA | |||
| GT-3535uV-GH45-400 | 1-3W | UVA,390-430nm | Taiwan Epileds 45mil vètikal | 3V 700mA | |||
| GT-3535UV-LG45-365 | 1-3W | UVA,365-375nm | Kore LG 45mil vètikal | 3V 700mA | |||
| GT{{0}B-GH45-470} | 1-3W | Ion Blue, 470-480nm | Taiwan Epileds 45mil plat | 3V 700mA | |||
| GT{{0}B-GH45-480} | 1-3W | Glas Ble, 480-485nm | Taiwan Epileds 45mil plat | 3V 700mA | |||
| GT{{0}cy-GH45-490 | 1-3W | CYAN 490-495nm | Taiwan Epileds 45mil plat | 3V 700mA | |||
| GT{{0}B{450-SA40 | 1-3W | Royal Blue, 450-455nm | Sanan 40mil, plant grandi limyè | 3V 700mA | |||
| GT{{0}B{447-GH45 | 1-3W | Royal Blue, 447-450nm | Taiwan Epileds 45mil plat | 3V 700mA | |||
| GT{{0}B{440-GH45 | 1-3W | Royal Blue, 440-445nm | Taiwan Epileds 45mil plat | 3V 700mA | |||
| GT-3535G-GH45-500 | 1-3W | Limyè vèt, 500-510nm | Taiwan Epileds 45mil plat | 3V 700mA | |||
| GT{{0}dr-GH42-660} | 1-3W | 650-660nm | Taiwan Epileds 42mil, PPE 3.2μmol/J | 2V 700mA | |||
| GT{{0}dr-SL42-660} | 1-3W | 650-660nm | Shilan 42mil, PPE 3.4μmol/J | 2V 700mA | |||
| GT{{0}dr-SL45-660} | 1-3W | 650-660nm | Shilan 45mil, PPE 3.95μmol/J | 2V 700mA | |||
| GT{{0}dr-SL60-660} | 1-3W | 650-660nm | Shilan 60mil, PPE 4.38μmol/J | 2V 700-1000mA | |||
| GT-3535F3-SA40 | 1-3W | Woz spectre konplè | Sanan 40mil, 380-850nm, plant grandi limyè | 3V 350-700mA | |||
| GT{{0}dr-GH42-680} | 1-3W | 680-690nm | Taiwan Epileds 42mil | 2V 700mA | |||
| GT{{0}FR-GH42-740 | 1-3W | 730-740nm | Taiwan Epileds 42mil | 2V 700mA | |||
| GT{{0}FR-GH42-750 | 1-3W | 750-760nm | Taiwan Epileds 42mil | 2V 700mA | |||
| GT{{0}FR-GH42-780 | 1-3W | 780-790nm | Taiwan Epileds 42mil | 2V 700mA | |||
| GT-3535IR-GH{2{2}} | 2-3W | 800-810nm, {{1}mW | Taiwan Epileds 42mil | 1.5V 700-1000mA | |||
| GT-3535IR-GH42-810DJ | 4-6W | 800-810nm, {{1}mW | Taiwan Epileds 42mil, Nano Stack | 3V 700-1000mA | |||
| GT-3535IR-LS{2{2}} | 1-1.5W | 845-855nm | Taiwan HPO 26mil | 1.5V 350-500mA | |||
| GT-3535IR-GH{2{2}} | 1-1.5W | 845-855nm | Taiwan Epileds 28mil | 1.5V 350-500mA | |||
| GT-3535IR-GH{2{2}} | 1-1.5W | 845-855nm | Taiwan Epileds 30mil | 1.5V 350-500mA | |||
| GT-3535IR-GH{2{2}} | 1-2W | 845-855nm | Taiwan Epileds 38mil | 1.5V 350-700mA | |||
| GT-3535IR-GH{2{2}} | 2-3W | 845-855nm, {{1}mW | Taiwan Epileds 42mil | 1.5V 700-1000mA | |||
| GT-3535IR-GH42-850DJ | 4-6W | 845-855nm, {{1}mW | Taiwan Epileds 42mil, Nano Stack | 3V 700-1000mA | |||
| GT-3535IR-GH{2{2}} | 2-3W | 940-950nm, {{1}mW | Taiwan Epileds 42mil | 1.5V 700-1000mA | |||
| GT-3535IR-GH{2{2}dJ | 4-6W | 940-950nm, {{1}mW | Taiwan Epileds 42mil, Nano Stack | 3V 700-1000mA | |||
| GT-3535IR-LS{2{2}} | 1-3W | 940-950nm | Taiwan HPO 42mil | 1-2V 700mA | |||
| GT-3535IR-GH{2{2}} | 1-3W | 980-985nm | Taiwan Epileds 42mil | 1-2V 700mA | |||
| GT-3535IR-GH{2{2}} | 1-3W | 1000-1050nm | Taiwan Epileds 42mil | 1-2V 700mA | |||
| GT-3535IR-GH{2{2}} | 1-3W | 1200-1250nm | Taiwan Epileds 42mil | 1-2V 700mA | |||
| GT-3535IR-GH42-1350 | 1-3W | 1300-1350nm | Taiwan Epileds 42mil | 1-2V 700mA | |||
| GT-3535IR-GH42-1450 | 1-3W | 1400-1450nm | Taiwan Epileds 42mil | 1-2V 700mA | |||
| GT-3535IR-GH{2{2}} | 1-3W | 1500-1550nm | Taiwan Epileds 42mil | 1-2V 700mA | |||
 |
GD-3535LASER-DR43-808 | 10W | 808nm, 3535 plat pake | Derui 43mil VCSEL lazè | 2.2v 4A 3500MW | ||
| GD-3535LASER-DR43-850 | 10W | 850nm, 3535 plat pake | Derui 43mil VCSEL lazè | 2.2v 4A 3500MW | |||
| GD-3535LASER-DR43-940 | 10W | 940nm, 3535 plat pake | Derui 43mil VCSEL lazè | 2.2v 4A 3500MW | |||
 |
GT{{0}W3W{{2{2}jN27 | 2*1W | Bi-koulè 3000K+6000K, dirije ki ka kontwole | Lasi 26mil vètikal | Chak koulè 3V 350mA | ||
| GT{{0}W6R{{2{2}}JN27LS26 | 2*1W | Bi-koulè 6000K blan + enfrawouj 850nm | Lasi 27mil vètikal pou blan, HPO 26mil pou enfrawouj 850nm | 2vdc 350mA pou IR, 3vdc 350mA pou blan | |||
| GT-3535R66IR85-GH38GH32 | 2*1W | Doub koulè, 660nm+850nm | Epileds 38mil 660nm ak Epileds 32mil 850nm, limyè threapy wouj | Chak koulè 2V 500mA | |||
 |
GT-3535RGB-SA26 | 3*1W | RGB koulè 3535 | Sanan 26mil vètikal | R625% 2fG525/B460NM, {{3}mA | ||
| GT-3535RGB-OLS20 | 3*1W | RGB koulè 3535 | Almay Osram 20mil vètikal | R625% 2fG525/B460NM, {{3}mA | |||
| GD{{0}RGB-SA38-0.7A | 3*3W | RGB koulè 5050 | Sanan 38mil vètikal | R625% 2fG525/B460NM, {{3}mA | |||
| GD-5050RGB-SA38-1.5A | 3*5W | RGB koulè 5050 | Sanan 38mil/4047mil vètikal | R625% 2fG525/B460NM, {{3}mA | |||
| GT-3535RGBW-SA26 | 4*1W | RGBW koulè 3535 | Sanan 26mil vètikal | R625/G525/B460NM/W6000K, 300-350mA | |||
| GT-3535RGBW-OSL20 | 4*1W | RGBW koulè 3535 | Almay Osram 20mil vètikal | R625/G525/B460NM/W6000K, 300-350mA | |||
| GT-5050RGBW-SA38-0.7A | 4*3W | RGBW koulè 5050 | Sanan 38mil vètikal | R625/G525/B460NM/W6000K, 350-700mA | |||
| GT-5050RGBA-SA38JY42-0.7A | 4*3W | RGBA koulè 5050 | Sanan 38mil vètikal pou RGB, Amber ak Epistar 42mil | R625/G525/B460NM/A595NM, 350-700mA | |||
| GT-5050RGBW-SA38-1.5A | 4*5W | RGBW koulè 5050 | Sanan 38mil/4047mil vètikal | R625/G525/B460NM/W6000K, 1000-1500mA | |||
| GT-5050RGBW-OSL40 | 4*3W | RGBW koulè 5050 | Almay Osram 40mil vètikal | R625/G525/B460NM/W6000K, 350-700mA | |||
Aplikasyon
Blan 3W 5W 3535 SMD dirije sitou itilize pou limyè ki ap dirije machin pou lave miray, ki ap dirije limyè inondasyon, ki ap dirije limyè jaden flè, ki ap dirije limyè sous dlo, abèy ki ap dirije limyè pou pèfòmans espesyal ak sou sa.
Konsènan GMKJ LEDGMKJ se yon manifakti ISO sètifye nan bon jan kalite segondè, segondè fyab ki ap dirije dyod, ki te fòme nan mwa janvye 2009. Anplwaye nou an gen plis pase 10 ane eksperyans nan ak ekselan angle. Tout anplwaye nou yo gen yon etik travay solid ak yon angajman solid pou bay bon jan kalite pwodwi ki toujou satisfè oswa depase kondisyon kliyan nou yo.
Sèvis nou an:
chajman
Opsyon livrezon:
Pou plis detay, tanpri ekri nou ekip GMLEDs dirèkteman! |
