Blan 50W COB dirije ak konektè fil montre jan pi ba a:

Non pwodwi	Blan 50W COB dirije ak konektè fil
Chips mak	Sanan 15*30mil 2 chips
Antre	30-34vdc 1500mA pou 50W pouvwa nominale
Klète	120-130LM/W
Koulè	Blan 2700K, 3000K, 4000K, 5000K ak 6500K
CRI	Ra>70, Ra>80 and Ra>90 opsyonèl
Pouvwa	10W; 20W; 30W; 40W; 50W; 60W; 80W; 100W
Ang ekleraj	Ang ekleraj 120 degre
Mak ak manifakti	GMLEDs, GMKJ
Konektè fil	Wago 1P konektè fil 2 pcs sou tablo. Konektè fil sa yo pral fè ou gratis nan soude fil. Ou jis bezwen mete fil la nan konektè fil la trè fasil.

Blan 50W COB dirije ak gwosè konektè fil:

4046 led dimension

Nòt: Tout dimansyon nan tolerans mm se ± 0.1mm sof si otreman te note.

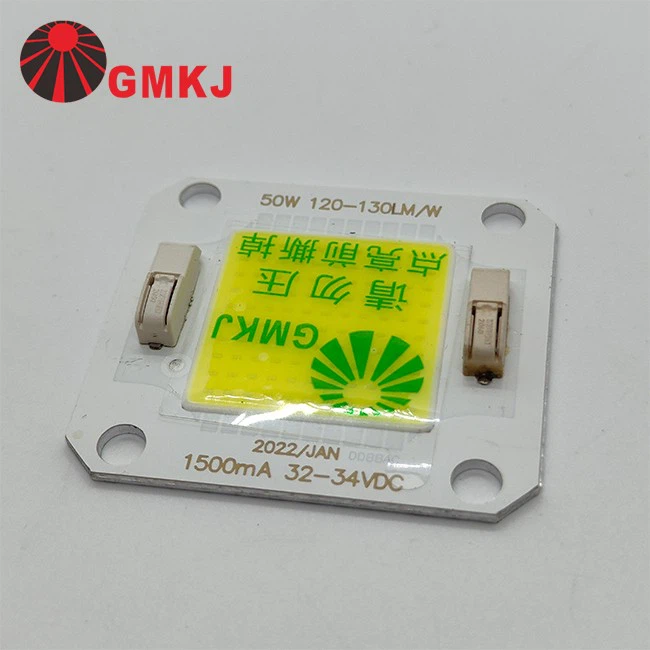

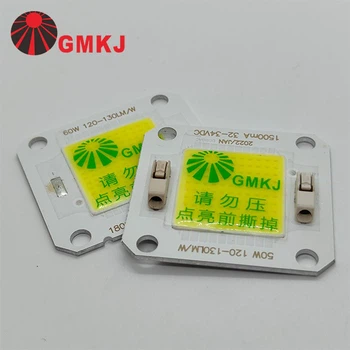

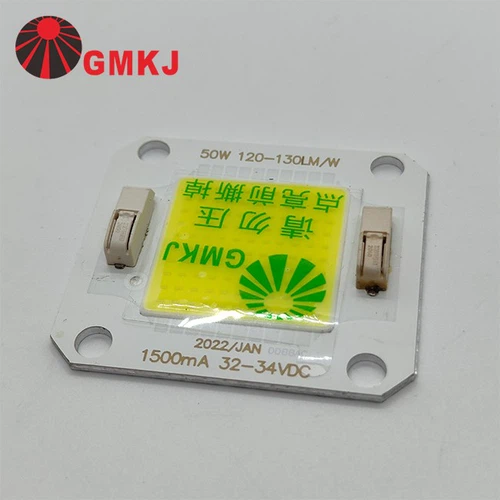

Blan 50W COB dirije ak foto konektè fil:

San fil connecteur 50w cob led	Avèk konektè fil 50w cob led

Blan 50W COB dirije ak karakteristik teknik konektè fil:

■ Karakteristik elektrik/optik --Blan (nan TA=25 degre)

Paramèt	Senbòl	Kondisyon	Min	Mwayèn	Max	Inite yo
Avant Voltage	V_F	I_F=1500mA	28.0	--	34.0	V
Rezistans tèmik Junction Pou Komisyon Konsèy	RΘ_J-B	I_F=1500mA	--	8	--	degre /W
Flux lumineux	Φv	I_F=1500mA	6000		6500	lm
Efikasite fotosentetik		I_F=1500mA	120		130	Lm/W
Tanperati Koulè	CCT	I_F=1500mA	5500		6000	K
CRI	Ra	I_F=1500mA	70	--	--	--
Koyefisyan Tanperati nan Voltage Avant	∆V_F/∆T	I_F=1500mA	−−	-2	−−	mV / degre
Kouran ranvèse	I_R	V_R=50V	−−	−−	10	μ A
Wè Ang	2Θ_1/2	I_F=1500mA	−−	120	−−	Deg

Blan 50W COB dirije ak seri konektè fil:

FOTO	MODÈL NON.	POUVWA	Klète	Chips spécifications	Espesifikasyon antre

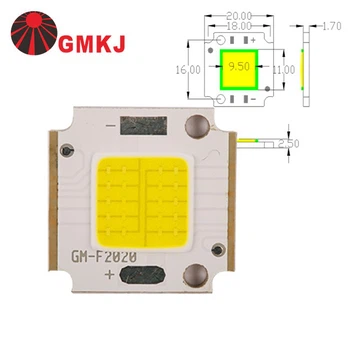

	GF-10W-2020	10W	Blan 120-130LM/W	Sanan 1530mil*2 flip chip	30-34v 300mA 10S2P
	GF-20W-4046	20W	Blan 120-130LM/W	Sanan 1530mil*2 flip chip	30-34v 600mA 10S4P
	GF-30W-4046	30W	Blan 120-130LM/W	Sanan 1530mil*2 flip chip	30-34v 900mA 10S6P
	GF-40W-4046	40W	Blan 120-130LM/W	Sanan 1530mil*2 flip chip	30-34v 1200mA 10S8P
	GF-50W-4046	50W	Blan 120-130LM/W	Sanan 1530mil*2 flip chip	30-34v 1500mA 10S10P
	GF-60W-4046	60W	Blan 120-130LM/W	Sanan 1530mil*2 flip chip	30-34v 1800mA 10S12P
	GF-80W-4046	80W	Blan 120-130LM/W	Sanan 1530mil*2 flip chip	30-34v 2400mA 10S16P
	GF-100W-4046	100W	Blan 120-130LM/W	Sanan 1530mil*2 flip chip	30-34v 3000mA 10S20P

FOTO	MODÈL NON.	POUVWA	Klète	Chips spécifications	Espesifikasyon antre
	GF-3W-0302-20STAR	3W	Blan 120-130LM/W	Sanan 1530mil*2 flip chip	9-11v 300mA 3S2P
	GF-5W-0502-20STAR	5W	Blan 120-130LM/W	Sanan 1530mil*2 flip chip	15-17v 300mA 5S2P
	GF-7W-0702-20STAR	7W	Blan 120-130LM/W	Sanan 1530mil*2 flip chip	21-24v 300mA 7S2P
	GF-10W-1002-20STAR	10W	Blan 120-130LM/W	Sanan 1530mil*2 flip chip	30-34v 300mA 10S2P
	GF-3W-0302-1414	3W	Blan 120-130LM/W	Sanan 1530mil*2 flip chip	9-11v 300mA 3S2P
	GF-5W-0502-1414	5W	Blan 120-130LM/W	Sanan 1530mil*2 flip chip	15-17v 300mA 5S2P
	GF-7W-0702-1414	7W	Blan 120-130LM/W	Sanan 1530mil*2 flip chip	21-24v 300mA 7S2P
	GF-10W-1002-1414	10W	Blan 120-130LM/W	Sanan 1530mil*2 flip chip	30-34v 300mA 10S2P
	GF-12W-1202-1414	12W	Blan 120-130LM/W	Sanan 1530mil*2 flip chip	36-40v 300mA 12S2P
	GF-12W-1202-1919	12W	Blan 120-130LM/W	Sanan 1530mil*2 flip chip	36-40v 300mA 12S2P
	GF-15W-1502-1919	15W	Blan 120-130LM/W	Sanan 1530mil*2 flip chip	45-50v 300mA 15S2P
	GF-18W-1802-1919	18W	Blan 120-130LM/W	Sanan 1530mil*2 flip chip	54-60v 300mA 18S2P
	GF-20W-2002-1919	20W	Blan 120-130LM/W	Sanan 1530mil*2 flip chip	60-64v 300mA 20S2P
	GF-24W-2402-1919	24W	Blan 120-130LM/W	Sanan 1530mil*2 flip chip	72-80v 300mA 24S2P
	GF-30W-3002-1919	30W	Blan 120-130LM/W	Sanan 1530mil*2 flip chip	90-100v 300mA 30S2P
	GF-30W-1006-2828	30W	Blan 120-130LM/W	Sanan 1530mil*2 flip chip	30-34v 900mA 10S6P
	GF-35W-1007-2828	35W	Blan 120-130LM/W	Sanan 1530mil*2 flip chip	30-34v 1050mA 10S7P
	GF-50W-1010-2828	50W	Blan 120-130LM/W	Sanan 1530mil*2 flip chip	30-34v 1500mA 10S10P
	GF-60W-1012-2828	60W	Blan 120-130LM/W	Sanan 1530mil*2 flip chip	30-34v 1800mA 10S12P

Blan 50W COB ki ap dirije ak konektè fil pwensipalman itilize pou dirije limyè lari, limyè segondè Bay, limyè plafon, ki ap dirije limyè desann, ki ap dirije limyè anpoul, ki ap dirije limyè tras pou pèfòmans espesyal ak sou sa.

2835 applications 1

GMKJ se yon manifakti ISO sètifye nan bon jan kalite segondè, segondè fyab ki ap dirije dyod, ki te fòme nan mwa janvye 2009. Anplwaye nou an gen plis pase 10 ane eksperyans nan ak ekselan angle. Tout anplwaye nou yo gen yon etik travay solid ak yon angajman solid pou bay bon jan kalite pwodwi ki toujou satisfè oswa depase kondisyon kliyan nou yo.

About GMKJ LED

Sèvis nou an:
PCB konsepsyon & Reflow sèvis soude
COB/dirije/chofè personnalisation
Devlopman mwazi (piki plastik & Die casting)
Reprezantan nan UK a, Kore di ak Czech.
ISO 9001-2008, SGS, TUV, BV, laboratwa akredite CNAS ak laboratwa optik.

2828 cob led shipment

Opsyon livrezon:
1. Pa eksprime: tankou DHL, UPS, TNT, FEDEX elatriye. Tan an livrezon se apeprè 10-15 jou.
2. Air Kago: lè lòd ou plis pase 100kgs ki pral pi ekonomik pase eksprime.
3. Kago lanmè: nou pral mete ajou machandiz lanmè yon fwa nou konnen pò lanmè ou kote machandiz yo pral delivre.
4. Ajan ki deziyen pa kliyan: tanpri di nou detay kontak ajan anbake ou epi nou pral fè aranjman pou delivre atik yo.

Pou plis detay, tanpri ekri nou ekip GMLEDs dirèkteman!
